NAVCOM SF-3040
Lightweight, versatile and reliable StarFire GNSS technology
NavCom’s SF-3040 pole-mount StarFire/RTK GNSS Survey Receiver provides RTK-level accuracy up to 40 km away from the base station or 5 cm-level position accuracy, anywhere in the world, anytime. Powered by the Sapphire™ Engine, the SF-3040 provides 66 channel tracking, including multi-constellation support for GPS, GLONASS and SBAS including StarFire.
Key Features
Light weight, rugged land survey receiver
Operates as an RTK base or rover
Built-in StarFire receiver
Multi-constellation support
GPS & GLONASS
Ultra RTK (up to 40km baseline)
StarFire Over IP delivery (Optional)
RTK Extend™ – Coast through base station outages
Dual hot swappable batteries for continuous operation
UHF radio option
“All-in-view“ tracking with 66 channels
High sensitivity / low signal level tracking
Fast acquisition / re-acquisition
Superior interference suppression (both in-band & out-of-band)
Patented multipath rejection

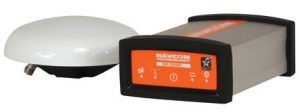

NAVCOM SF-3050
Integrated StarFire™/RTK GNSS Receiver
NavCom’s SF-3050 family of integrated StarFire™/RTK GNSS Receivers provides five centimetre position accuracy, anywhere in the world, anytime. Powered by the new Sapphire™ Engine, the SF-3050 provides 66 channel tracking, including multi-constellation support for GPS and GLONASS. It also incorporates high-speed I/O components, including Ethernet, Bluetooth and USB capability.
Key Features
“All-in-view” parallel tracking with 66 channels
SBAS (WAAS/EGNOS/MSAS/GAGAN) tracking
Built-in StarFire receiver
L1, L2, L5, G1, & G2 full wavelength carrier phase tracking
C/A, P1, P2, L2C, L5, G1 & G2 code tracking
High sensitivity / low signal level tracking
Fast acquisition / re-acquisition
Superior interference suppression (both in-band & out-of-band)
Patented multipath rejection
StarFire Over IP delivery (Optional)
RTK Extend™
StarFire Over the Air (OTA) Licensing Capable
Minimal data latency
Data message formats
NMEA-0183: ALM, GBS, GGA, GLL, GRS, GSA, GST, GSV, RMC, RRE, VTG, ZDA, NCT proprietary
Differential Correction: RTCM 2.3 and 3.0, SBAS, and StarFire (proprietary)
RTK Correction: CMR/CMR+, RTCM, NavCom Proprietary UltraRTK™
Receiver Control: NavCom Proprietary commands (ASCII)
Configurable as RTK base or rover
Programmable output rates
Event marker input
1 PPS output
Communication Ports: 2 x RS232 (1 – Changeable to RS422), 1 x USB 2.0 (Host or Device), Bluetooth™ and Ethernet (10T/100T)
2GB Internal Data Storage
Performance Upgrade Path
The SF-3050 is designed with a robust and long-term performance upgrade path to meet changing application needs via software optioning alone. Increased functionality does not require the costly purchase of a new receiver. The SF-3050 software-enabled features, bundled or purchased individually, cover a wide variety of applications.
Over the Air StarFire Licensing
Over The Air StarFire Licensing is the easiest way to install a StarFire license. The installation of a purchased license is accomplished via radio broadcast. Over The Air StarFire Licensing is especially convenient for receivers in remote locations in the field.
GNSS Performance
Sapphire, the SF-3050’s engine, is a 66 channel GNSS with the required flexibility to track all civilian GNSS and SBAS signals (GPS & GLONASS) with integrated StarFire signal tracking. Sapphire’s industry leading receiver sensitivity provides more than 50% signal to noise ratio advantage over competing technologies. This results in improved real time positioning, proven through independent tests, when facing various multipath environments.
High Precision
Coupled with our StarFire subscription service, the SF-3050 delivers 5 cm position fixes without the use of a secondary receiver. Add our RTK option and an external radio capable of receiving RTK corrections from a base station, and the SF-3050 is able to perform RTK-level surveys for unsurpassed accuracy. On-board memory (2GB) and a geodetic-quality antenna enable millimetre-level accuracy from post-processing.
